Product Description

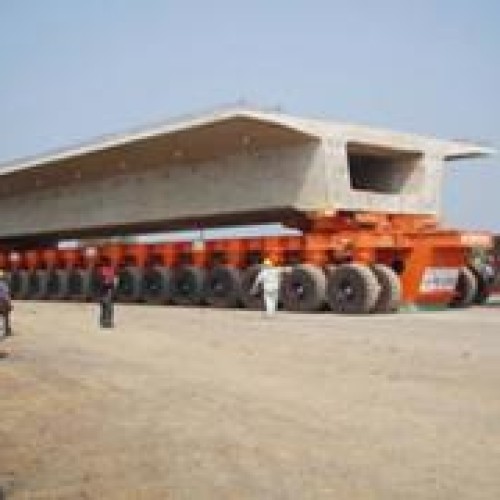

Functions of Girder Carrier: Transport precast concrete box beam to the launching gantry for bridge erection; Carry girder erection machine to working place. DCY450 Girder Carrier Technical Parameters Dimension (L*W*H): 29.6*6.55*2.05±0.35M Min. turning radius: 36.5m (outer) 27.35m (inner) Loading mass: 450t Dead mass: 130t Tyre spec: 11.00R20 Vehicle speed: 0-5.0km/h (full load, flat ground) 0-10.0km/h (idle load, flat ground) Wheelbase: 1500m Wheel tread: 4450/1450mm Shaft load mass: Loading 450t / 20.7t Contact area pressure ratio: Loading 450t / 0.44MPa Power: 300Kw/2300rpm DCY900 Girder Carrier Technical Parameters Loading capacity: 900t Vehicle overall mass: 270t Vehicle speed: 0-5.0km/h (full load, flat ground) 0-10.0km/h (idle load, flat ground) 0.18km/h (Jiggle) Tyre size/Quantity: 26.5R25 Running modes: Independent steering type (DCY900): Straight, diagonal, sway, automobile modes Connecting bar steering type: Straight and automobile modes
