Product Description

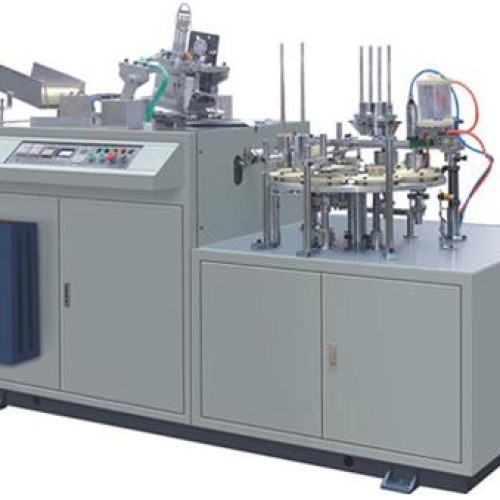

DS-D Paper Cup/Bowl Sleeve Forming & Wrapping Machine is an automatic equipment to make a second-wall sleeve over the inner-cup/bowl(cup/bowl finished by paper cup/bowl machine ), wear a sleeve around the paper cup/bowl . It has the function as photocell detection, failure alarm, counting etc.,makes double wall paper cup/bowl after running a whole procedure of automatic paper (fan-sleeve) feeding, sleeve-cone-body sealing (by ultrasonic wave), water-glue spraying (spray glue inside the cone-sleeve), cup/bowl feeding (absorb cup into the cone-sleeve), inserting and bonding sleeve to the cup, collecting with the function of photo electric detection, fault alarm, and count. It is an ideal equipment of making two/double walls paper cups/bowls such as direct-sleeve cups, hollow-sleeve cups, rippled/corrugated-sleeve paper cups etc. The sleeve-wrapped paper cups are popular for hot drinks(tea, coffee etc ). Technical date): Cup size 3-16oz and 20-40oz and 40-70oz Required paper PE paper, Varnishing Printed paper, or other film coated paper (can be sealed by ultrasonic) Suitable paper weight 170-450gsm (Recommend 250-300 gsm); Ration Productivity 40-50pcs/min Total power 4KW Power 220V 50HZ /380V 50HZ Size 2100×860×1600(L×W×H) Net weight 1000kg
