Product Description

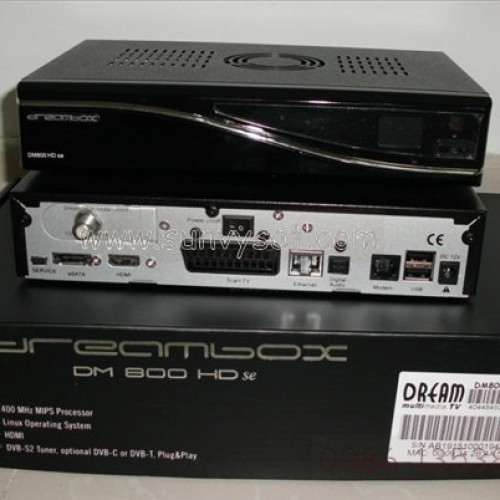

Dreambox DM800HD SE manufacturer MAIN FEATURES Detailed Product Description Main features are a 400 MHz processor, the Dvb-s2 800 HD se supports the Linux TV API Have a look to HighDefinition TV on your Dvb-s2 ?10/100MBit compatible Ethernet Interface ?HI connector ?eSATA Powerful receiver for digital TV and Radio programs. Main features are a 400 MHz processor the 800hd se 800 SE+ (plus) supports the Linux TV API have a look to HighDefinition TV on your 800hd se 10/100MBit compatible Ethernet Interface DVI connector plug & play Tuner brilliant OLED display SATA for use either as internal HDD 2,5" or eSATA - 400 MHz MIPS Processor - Linux Operating System - OLED - Display - MPEG-2 / H.264 Hardware decoding - Tuner: DVB-S, optional: DVB-C, DVB-T - Tuner Module, Plug&Play - 1 x Smartcard-Reader - V.24/RS232 Interface - 10/100Mbit Ethernet Interface - 1 x Scart (RGB, FBAS or S-Video) - HDMI - 2 x USB 2.0 - analog modem - S/PDIF Interface for digital bit stream out (AC-3) - 64 MByte Flash, 256 MByte RAM - SATA - for use either as internal SATA HDD 2,5? - or to use for extern eSATA - unlimited channel lists for TV/Radio - channel-change time < 1 second - automatic service scan - directly bouquet-lists - EPG (electronic program guide) - multiple LNB-Switching control (supports DiSEqC) - OSD in many languages and skin-support - Videotext Decoder - extern 12V power supply 800hd se 800 SE technical data DBS-Tuner mit DVB-S2: Frequency Range 950 .... 2150 MHz Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK) Symbol rate DVB-S: 2 ... 45 Mbaud/s, SCPC/ MCPC DVB-S2: 10 ? 31 Mbaud/s (8PSK) , 10 ?30 Mbaud/s (QPSK) Video decoder: Video Compression MPEG-2 and MPEG-1 compatible, H.246 Video Formats 4:3 / 16:9 Letterbox for 4:3 TV-Device Audio decoder: Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3 Audio Mode Dual (main/sub), Stereo Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz Output analog: Output Level L/R 0,5 Vss on 600 Ohm THD > 60 dB (1 kHz) Crosstalk < -65 dB Output digital: Output Level 0,5 Vss on 75 Ohm Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz S/PDIF-Output optical, Toslink Ausgang Video: Ausgangspegel FBAS 1 Vss +/- 0.3 dB an 75 Ohm Video parameter: Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm Teletext filter in conformity with ETS 300 472 Standard TV-Scart: Output: FBAS, RGB, S-Video Serielle Interface RS 232: Typ RS232 bidirectional Bitrate 115,2 kBit/s max. Plug Connector SUB-D-9 Function: Update of Firmware Ethernet: 10/100 MBit compatible interface Function: Update of Firmware Analoge modem: analoge modem for Internet connection SATA Interface: - for use either as internal HDD 2,5? or eSATAor internal 2,5" HDD USB 2 x USB 2.0 Host LNB power and polarisation per tuner: LNB Current 500mA max.; short-circuit-protected LNB Voltage vertical < 14V no load, > 11,5V at 400mA LNB Voltage horizontal < 20V no load, > 17,3V at 400mA Count of active satellite position: DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION DiSEqC - Rotor Control Power consumption: < 15W at 12V External PSU Input: 110-240V AC / 50-60Hz / 0,6A Output: 12V = / 3,0A Physical specification: Ambient Temperature +15°C...+35°C Humidity < 80% Size (W x D x H): 195 mm x 140 mm x 40 mm Package included: 800hd se receiver x1 remote control x1 power supply x1 hi cable x1 scart to av connector x1 TEL:0086-755-21056011 FAX:0086-755-21056011 MOBILE:0086-13538017110 MSN&Mail:shengyu@live.cn Email:service@sunvysat.com/sunvysat@hotmail.com SKYPE:seafish3344 QQ:1076046890/812917848 website:www.sunvysat.com
