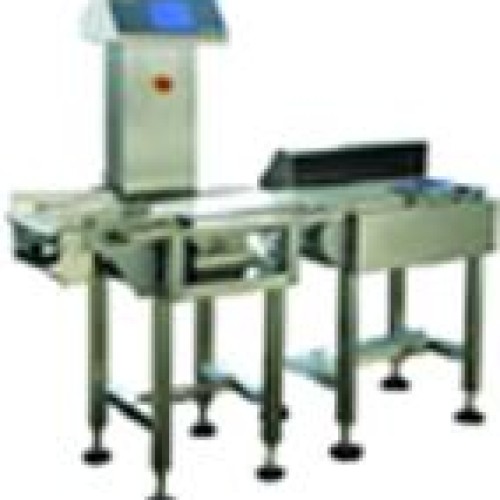

| Model NO.: | Inline check weigher(7g-1000g)33459 |
|---|---|
| Packaging Qty: | Wooden case |
| Min. Order (MOQ): | 1 |
| Manufacure Name: | Rehoo |
| Customization: | Available Customized Request |
|---|
FEATURES 1.Strong stainless steel structure; Water proof design. 2. High accurate load cell; Based on advanced DSP technology. 3. Automatic weighing compensation and zero tracking. 4. 100 products preset; Easy to edit and recall. 5. Quickly product shift and speed recall. 6. 2000 sorting records; Printer output ready. 7. LCD with Touch screen; Friendly operation interface. PURPOSE 1, Applied to automatic online package weighing and sorting. 2, Auto-Statistic function turn weighing, maintenance, operation, statistic to more easier. SPECIFICATIONS Model CWC-230NS Measurement Strain Guage Rejection Air Jet / Flapper / Pusher / Falling Drop (Option) Operation Touch Screen Alarm Buzzer & Lamp Belt Width 230mm Belt Speed 31-70m/min Power AC110V/220V 50-60HZ Rated Output Appr.200W Dimension 1468mm(L)*558mm(W)*1285±35mm(H) Weight 68kg + 44kg cwc-230NS CHART Weight Max. Speed Accuracy 7-99g 70bags/min ±0.5g 100-199g 60bags/min ±0.5g 200-399g 50bags/min ±0.5g 400-999g 45bags/min ±1.0g 1000-2999g 40bags/min ±2.0g 3000-5000g 30bags/min ±2.0g
