Product Description

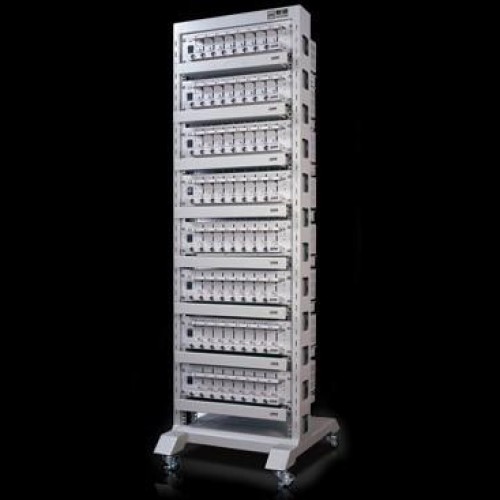

This equipment is 8-channel battery testing machine for R&D all the rechargeable battery (such as Li-polymer, Li-ion, Ni-MH, Ni-Cd, Lead-acid, EV battery, HEV battery etc) at 3A up to 5V. NEWARE BTS are mainly used for battery testing fields such as the comprehensive performance testing, the life cycle testing, the materials research of the batteries, small-scale battery formation, capability grading, battery pack and so on. We can customize types of BTS equipment with the current range 1mA-1000A and the voltage range 5V-500V, negative voltage can also be added according to the needs of customers. Hardware Features: 1: According to the international standard design, each channel of the system has an independent constant-current source and a hardware constant-voltage source. 2: The internal electrical power supply uses the high efficiency switching power supply, the energy conservation effect is remarkable, each power tube has the independent protection circuit, guarantees the Equipment works with safety and reliability. 3: Measure adopts four wire methods, decrease contact error, increase measure precision. 4: With high efficient cooling system, each equipment can work 24 hours with full load. 5: Hardware adopts double loop control, can change from constant current to constant voltage without pinnacle, and protect battery. Software Features: 1: Constant-current source and constant voltage source in each channel can be programmed and controlled as desired. 2: Each channel can program and test independently, and can setup professional step; whenever any of these steps meet the trip point (such as power fail, user stop, safe stop, etc), system can resume step from the trip point. 3: High-speed data acquisition: High-speed sampling ADC with all details of voltage and current can be got. The data, diagram and raw data can be exported to EXCEL, TXT, and Word, and can be edited and processed. 4: Calibrate current and voltage by calibration software, which can change address of cabinet and measure range of each channel. 5:Using C/S model, system can be remote controlled via internet. Connect PC via USB/Network/UART port (Every Device has a communicate port). 6: Formidable data analyses and diagram (curve) processing function. 7: Regular report form: The data obviously derives 8: Conventional report form: Derives the entire NDA data file
