Product Description

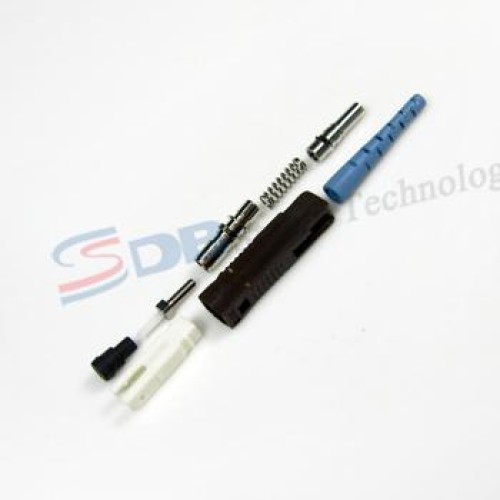

The connector is available in both single-mode and multimode versions, and is fully compatible with Telecordia-GR-326-CORE standard. Both single-mode and multimode versions come with a zirconia ceramic ferrule with pre-polished PC profile and convex spherical end. This allows for fast polishing of the fiber and enables the installer to achieve low optical loss, while ensuring maximum repeatability. Application: - Telecommunication - CATV - LAN & WAN - Network - Broadband - FTTX. Features: - Precision mechanical dimension - One Piece with pre-domed ceramic ferrule is designed for easily assembly. - Meets Telecordia-GR-326-CORE specifications - Low insertion loss - Ultra low back reflection - Corrosion resistant body - Fixed key and activity key can be selected - For 3.0mm, 2.4mm, 2.0mm jacket or 900µm buffer. SPEC: - Insertion loss: 0.20dB (SM) 0.25dB (MM) - Return loss: 55dB (PC) - Fiber compatibility: 62.5/125µm/50/125µm multiple mode and 9/125µm single mode - Boot size: 3.0, 2.0 or 0.9mm - Connectors type: SC, ST, FC, MTRJ, LC, E2000, MU, and more
