Product Description

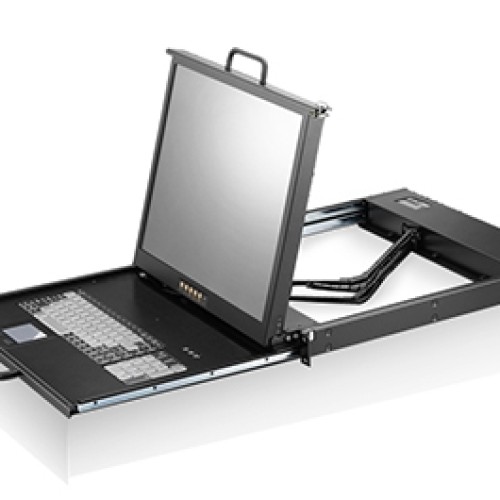

1. Features: Meets EIA310c & IEC-3 specifications 1U, Dual Rail, built-in A-grade 17” or 19” TFT LCD Built-in 17” LCD Monitor, keyboard and touchpad USB or PS2 interface for connecting to PC ports Includes a key-locking mechanism to prevent unauthorized access 104 keys laptop type keyboard with touch pad Provides up to 130-degree monitor rotation for viewing flexibility Built-in rail self-locking device Tempered glass protect LCD screen 2. Ordering Information URK701-17PB 1U, Dual Rail, 17" LCD keyboard drawer, PS2 KB/MS with 1.8m KVM cable URK701-17UB 1U, Dual Rail, 17" LCD keyboard drawer, USB KB/MS with 1.8m KVM cable URK701-19PB 1U, Dual Rail, 19” LCD keyboard drawer, PS2 KB/MS with 1.8m KVM cable URK701-19UB 1U, Dual Rail, 19” LCD keyboard drawer, USB KB/MS with 1.8m KVM cable Specification 1. Model NO. URK701-17 ; URK701-19 2. Ports switch VGA D-Sub 15 pin, USB or PS/2 keyboard Mouse 3. Drawer Design Dual Rail for panel and keyboard enable independent extraction of either panel or keyboard alone 4. Weight 12 kgs 5. Dimension 442.4 x 44 x 480 mm (W x H x D) 6. Power Supply Built-in 60W, 100~240VAC Auto Switch 7. Construction Heavy-duty steel 8. Keyboard 104-key keyboard with touchpad Option KB: CH, FR, GR, KR, RU, SP, UK, US 9. Protection Tempered glass protect LCD screen 10. Physical Security Key locking Mechanism 11. Power Consumption 3 watts stand-by, 25 watts in-use 12. Temperature Operate: 0 ~ 50°C Storage: -20 ~ 60°C 13. Approvals CE, FCC class A,RoHS 14. Size 17” ; 19” 15. Resolution 1280 x 1024 16. Brightness 300 cd/m2 17. Contrast Ratio 800 : 1 18. Viewing angle 160(H)/160(V) ; 170(H)/160(V) 19. Display Colors 16.7M
