| Model NO.: | Temperature controller84284 |
|---|---|
| Min. Order (MOQ): | 1 |
| Customization: | Available Customized Request |
|---|

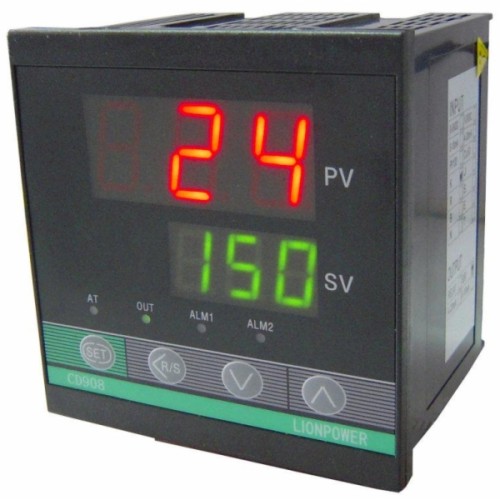

CD-908 3 digital temperature controller Feature 1. New algorithm using fuzzy logical PID control 2. Six alarm mode setting freely 3. TC input, RTD input, Voltage input, Ampere input 4. Relay output, Voltage output, Ampere output 5. 3 digit LED display Model and parameter 1.How to select input type RTD Pt100(0-499.9°C) no need custom-mode; free exchange the input way TC K(0-600°C) R(0-1600°C),S(0-1600°C),B(0-1800°C),E(0-1000°C),N(0-1200°C),J(0-800°C),T(0-400°C) Need custom-mode 2.Technical parameters Measuring accuracy Less ±0.5%F.S±l dig Control mode ON/OFF control, PID direct action, PID reverse action Control accuracy ±1°C Control output Relay output, voltage output 0-10mADC output, 4-20mADC output Relay contact burden 3A/250VAC Power 90-250VAC 60Hz Anti-interference IEC 3G
