| Model NO.: | Pipe flame cutting& beveling machine 456 |
|---|---|
| Packaging Qty: | Sea worthy |
| Manufacure Name: | Shanghai qianshan piping technology co., ltd. |
| Customization: | Available Customized Request |
|---|

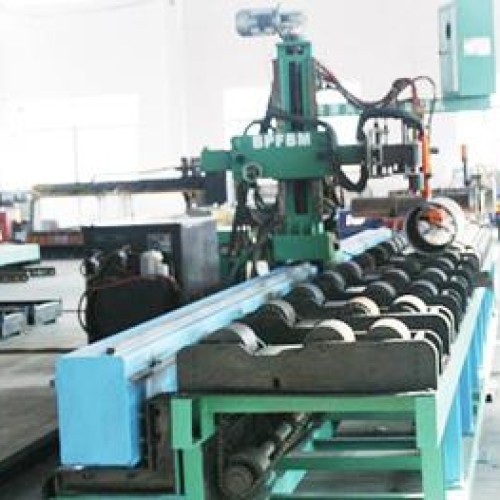

Roller-bed-type Pipe Flame Cutting & Beveling Machine Model: BPFBM-24A1/A2 Performance features On-line Performance: Very good (Designed as per the one line equipment of the production line) Beveling Capacity: 5Min /pipeline bevel (DN200 SCH40) (for Type A1)/6Min /two pipeline bevels (DN200 SCH40) (for Type A2) Bevel cutting: Cutting pipe and beveling one of Type A1 and two of Type A2 simultaneously. Bevel quality: Good Price: Higher than the Fixed-type Radial Pipe End Beveling Machine but lower than the Fixed-type Highly-efficient Pipe Cutting & Beveling Machine Technical parameters Pipe diameter applicable: DN100-mm600(110-610) Applicable wall thickness: 3-40 Materials applicable: Carbon steel, alloy steel, and cryogenic steel Cutting length: 6350MM Bevel Shape: V Cutting direction: Lengthwise Roller bed: Structure: Theree-roller with fixed distance Roller bed Length: 7000MM Driving System: Servo motor + precision reducer Rev: 2.5M/Min (VF stepless speed adjustment) Rol
