Product Description

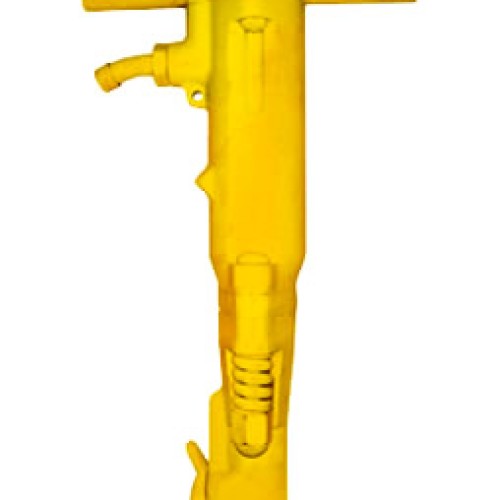

The pneumatic breaker mode B87C is tools with compressed air as its power.The compressed air is distributed alternatively through the distributing valve into either end of the cylinder assembly so that the hammer inside is made to carry on a reciprocal motion which impacts the shank of the steel chisel by the tappet drives the chisel into the concrate foundation and makes them split into huge pieces. SpecificationWhole length 686mm Total weight 39kg Cylinder diameter 63.5mm Working pressure 0.63Mpa Impact energy 100 +/- 10% J Impact power 1.8 +/- 10% KW Impact frequency 18 +/- 5% Hz Air consumption 55 +/- 15% L/S Air pipe inner diameter 19mm Shank Size 32mm * 160mm
