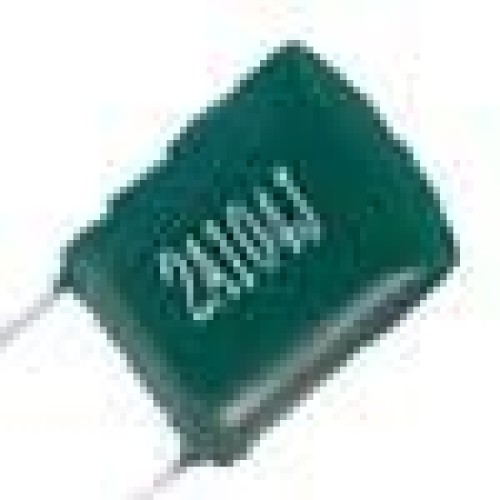

| Model NO.: | B01 polyester (mylar) film capacitor-pei9067 |
|---|
| Customization: | Available Customized Request |
|---|
FEATURES Polyester film, inductive, epoxy resin coating. Dissipation factor is small because the leads are directly welded to electrodes. High stability and reliability. RATING AND CHARACTERISTIC Climatic category:55/085/21 Rated temperature:+85? Capacitance tolerances:±5%;±10%;±20% Rated Voltage dc 100v,250v,400v,630v,1000v,1200v Capacitance Range 0.00027 to 0.47µf Voltage:2UR (1s) Insulation resistance:=30000MO Dissipation:=0.01(1kHz)
