Product Description

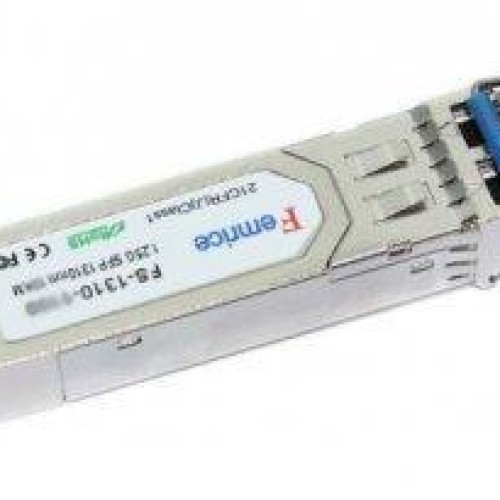

  FS-1310-0200 155Mbps SFP Optical Transceiver, 20km Reach   - - - - Product View | P/N: | FS-1310-0200 | Data Rate: | 155Mbps | Distance: | 20KM | LD: | 1310nm FP | PD: | PIN | TX Power: | -14~-8dBm | RX Sens: | -32dBm | Temp: | CT | - - - -   Features # Up to 155Mbps data-rate # 1310nm FP laser and PIN photodetector for 20km transmission # Compliant with SFP MSA and SFF-8472 with duplex LC receptacle # Digital Diagnostic Monitoring: # Internal Calibration or External Calibration # Compatible with RoHS # +3.3V single power supply # Operating case temperature: Standard :0 to +70°C Industrial : -40 to +85°C   Applications # SDH STM-1, S-1.1,L-1.1, L-1.2 # SONET OC-3 IR1,LR1,LR2 # Other optical links   Description The SFP transceivers are high performance, cost effective modules supporting 155Mbps data-rate and 20kmtransmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance  preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.   Absolute Maximum Ratings Table1-Absolute Maximum Ratings - - - - Parameter | Symbol | Min | Max | Unit | SupplyVoltage | Vcc | -0.5 | 4.5 | V | StorageTemperature | Ts | -40 | +85 | °C | OperatingHumidity | - | 5 | 85 | % | - - - -   Recommended Operating Conditions Table2-Recommended Operating Conditions - - - - Parameter | Symbol | Min | Typical | Max | Unit |   OperatingCaseTemperature | Standard |   Tc | 0 |   | +70 | °C | Industrial | -40 |   | +85 | °C | PowerSupplyVoltage | Vcc | 3.13 | 3.3 | 3.47 | V | PowerSupplyCurrent | Icc |   |   | 300 | mA | DataRate |   |   | 155 |   | Mbps | - - - -   Opticaland Electrical Characteristics FS-1310-0200:(FPandPIN,1310nm, 20kmReach) Table3- Opticaland Electrical Characteristics   - - - - Parameter | Symbol | Min | Typical | Max | Unit | Notes | Transmitter | CentreWavelength | ?c | 1260 | 1310 | 1360 | nm |   | SpectralWidth(RMS) | ?? |   |   | 4 | nm |   | AverageOutputPower | Pout | -14 |   | -8 | dBm | 1 | ExtinctionRatio | ER | 9 |   |   | dB |   | DataInputSwingDifferential | VIN | 400 |   | 1800 | mV | 2 | InputDifferentialImpedance | ZIN | 90 | 100 | 110 | ? |   |   TXDisable | Disable |   | 2.0 |   |
