| Model NO.: | 24vb-x stainless steel fine wire drawing machine2534 |
|---|---|
| Packaging Qty: | Set |
| Min. Order (MOQ): | 1 |
| Manufacure Name: | Listrong |
| Customization: | Available Customized Request |
|---|

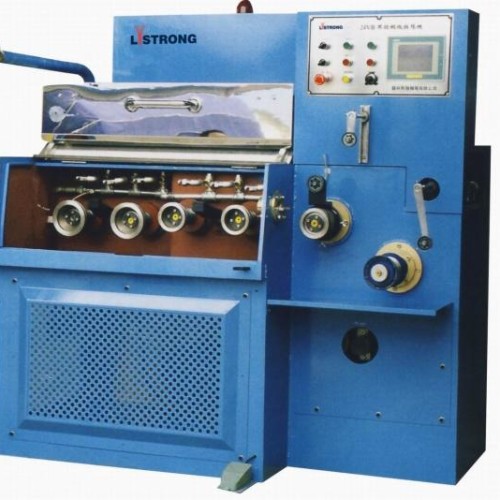

24VB-X Stainless steel fine wire Drawing Machine technical parameter 1.Machine type 24VB-X 2.Inlet diameter(MM) 0.09-0.3 3.Outlet diameter (MM) 0.02-0.07 4.Max. speed(MPM) 800 5.Max.Number of Drawing dies 24 6.Capstan : Tungsten 7.Max. Capstan dia.(MM) 130 8.Frame : Welded by steel plate 9.Transmission method : By flat belts 10.Pay-off method : Pay-off with hairbrush 11.Tension control : Tension tape wheel device 12.Lubrication system of drawing : Spray 13.Suitable spool (MM) : Double awls 14.Capacity for take-up(KG) 3.5 15.Loading & unloading method : Shaft type 16.Service voltage 380V 17.Brake : Electromagnetic brake 18.Machine dimension(MM) 2300L*1300W*1700H 19.Machine weight(KG) 1500
