| Model NO.: | Stainless steel twill dutch mesh 58458 |
|---|---|
| Packaging Qty: | Base on in your need products |
| Manufacure Name: | Chaoyue |
| Customization: | Available Customized Request |
|---|

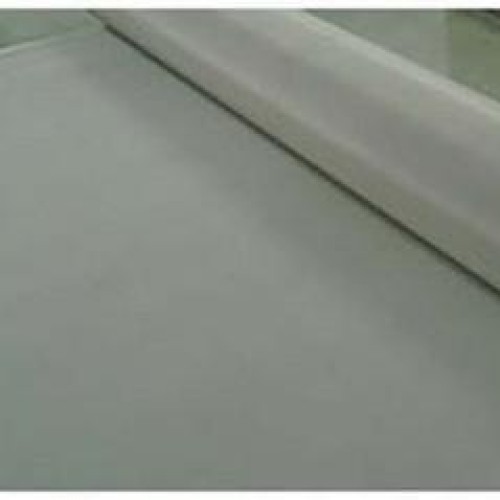

Stainless steel wire mesh twill Dutch weave We provide stainless steel wire mesh twill Dutch weave with warp-not-fully-covered mainly from 120 mesh X 400 mesh to 325 mesh x 1900 mesh. Wire diameter from 0.10x0.071mm to 0.036x0.025mm. Other sizes not listed below also available at customers' requirements. For warp-not-fully-covered twill Dutch weave, we provide wire mesh made with special twill weaving types, thus to ensure the weft wire distributed smoothly. Mesh x Mesh Wire Dia. x Wire Dia(mm) Nominal Opening (µm) Fineness ( µm) Efficient section rate% Mesh weight kg/m2 Mesh thickness (mm) 325X1900 0.036X0.025 8 12~14 8.5 0.43 0.086 325X1600 0.036X0.025 10 14~15 10.0 0.38 0.086 250X1250 0.056X0.036 10 17~19 6.9 0.64 0.112 200X1200 0.063X0.04 13 20~22 8.9 0.73 0.142 200X900 0.063X0.045 14 22~25 8.0 0.70 0.153 165X800 0.071X0.05 19 27~30 9.8 0.76 0.171 165X800 0.071X0.05 19 27~30 9.8 0.76 0.171 165X1000 0.071X0.04 20 25~28 19.4 0.65 0.151 200X540 0.063X0.05 20 27~31 9.0 0.5
