| Model NO.: | Cnc angle punching machine13255 |
|---|---|
| Packaging Qty: | Bamboo carton |
| Manufacure Name: | Jinan fast cnc machinery co., ltd |
| Customization: | Available Customized Request |
|---|

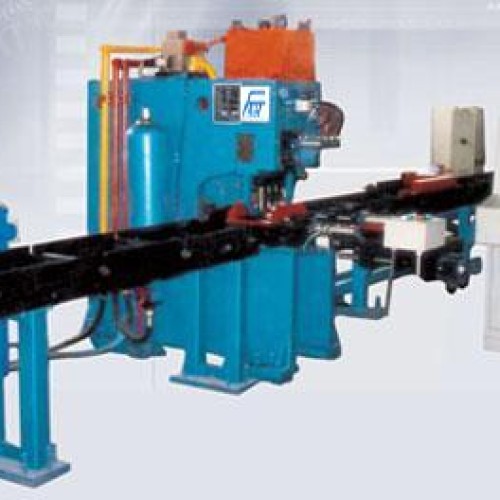

We have already exported our cnc machines to Russia,India,Indonesia,Jordan and so on. CNC Hydraulic Angle Punching and Marking line: Introduction: With two punching and one printing working stations. Hole's dimension can be selected by computer program. The place of punching and printing are controlled by computer. Main Technical Data Model: YC100 Angle size: 16MN Q235A 40*40*3-160*160*16 Max. Punching capability(D*T mm)26*16 Punching force(Kn) 1000 Marking force(Kn) 1000 Varieties of hole 2 Number character 12 Dimension of charecter(mm) 14*10*19 Stadia of hole >=40 ~63 20 >= 70~100 32 >=110~125 42 >=140~160 50 Distance between hole and edge min. (mm) 25 AC servo motor power(KW) X axis(side stop) 1.5 Y axis(changing of stadia) 1.0 Stroke of side stop max. (m) 8-10 Position speed of side stop(m/min) 20 Precision of workpiece GB2694-2003 Net weight(Kg) 5500 GB/T19001-2000 ---- ISO9001: 2003 Welcome to visit our factory to see the machinery working,
